Description

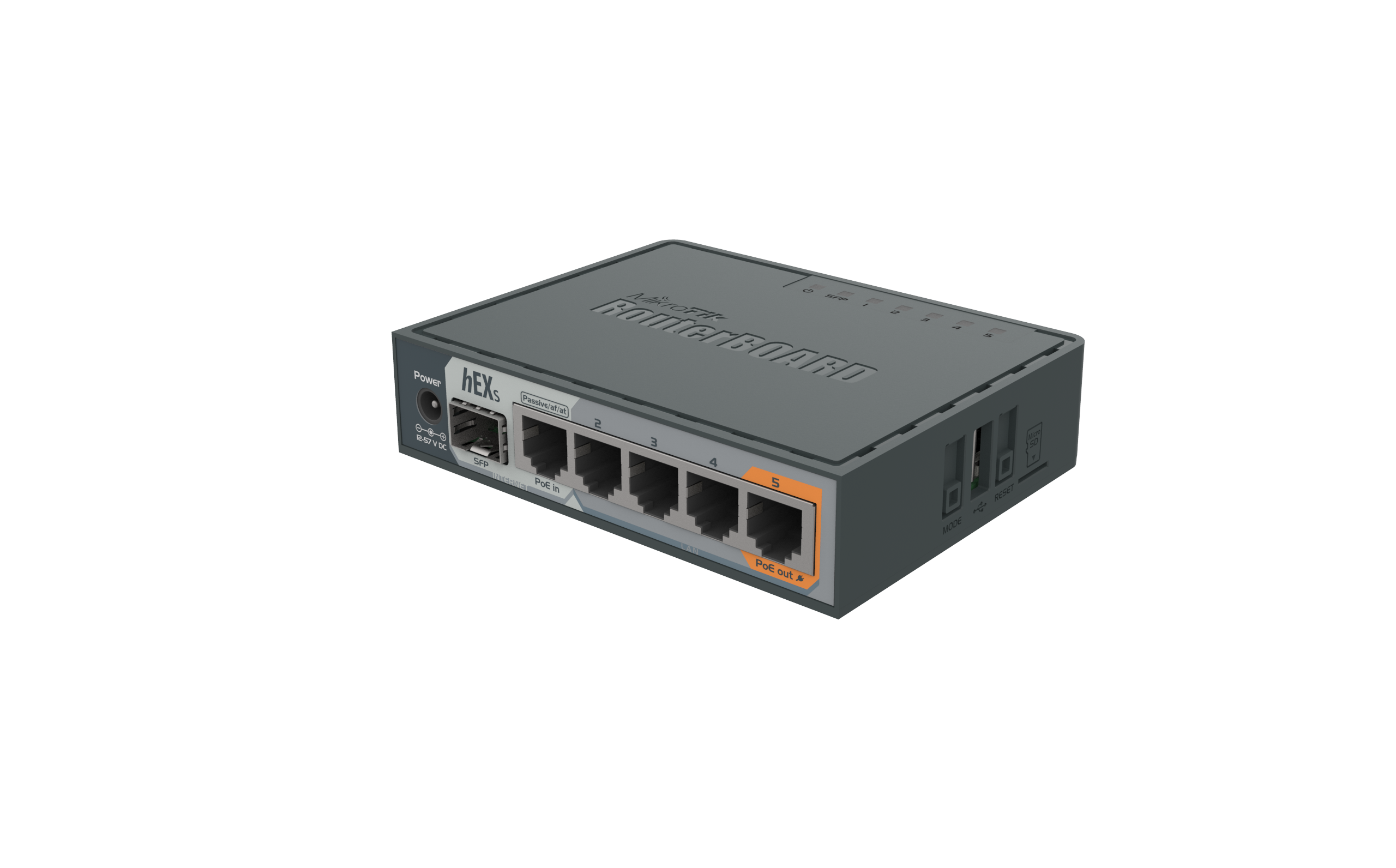

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Product specifications
Specifications
| Product code |
RB760iGS |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| Dimensions |
113 x 89 x 28 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$69.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE out |
Passive PoE up to 57V |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max out per port output (input > 30 V) |
500 mA |
| Max out per port output (input < 30 V) |
500 mA |
| Max total out (A) |
500 mA |
| Max power consumption |
24 W |
| Max power consumption without attachments |
6 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
| Memory card type |
microSD |
| Memory Cards |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Mode button |
Yes |
