Description

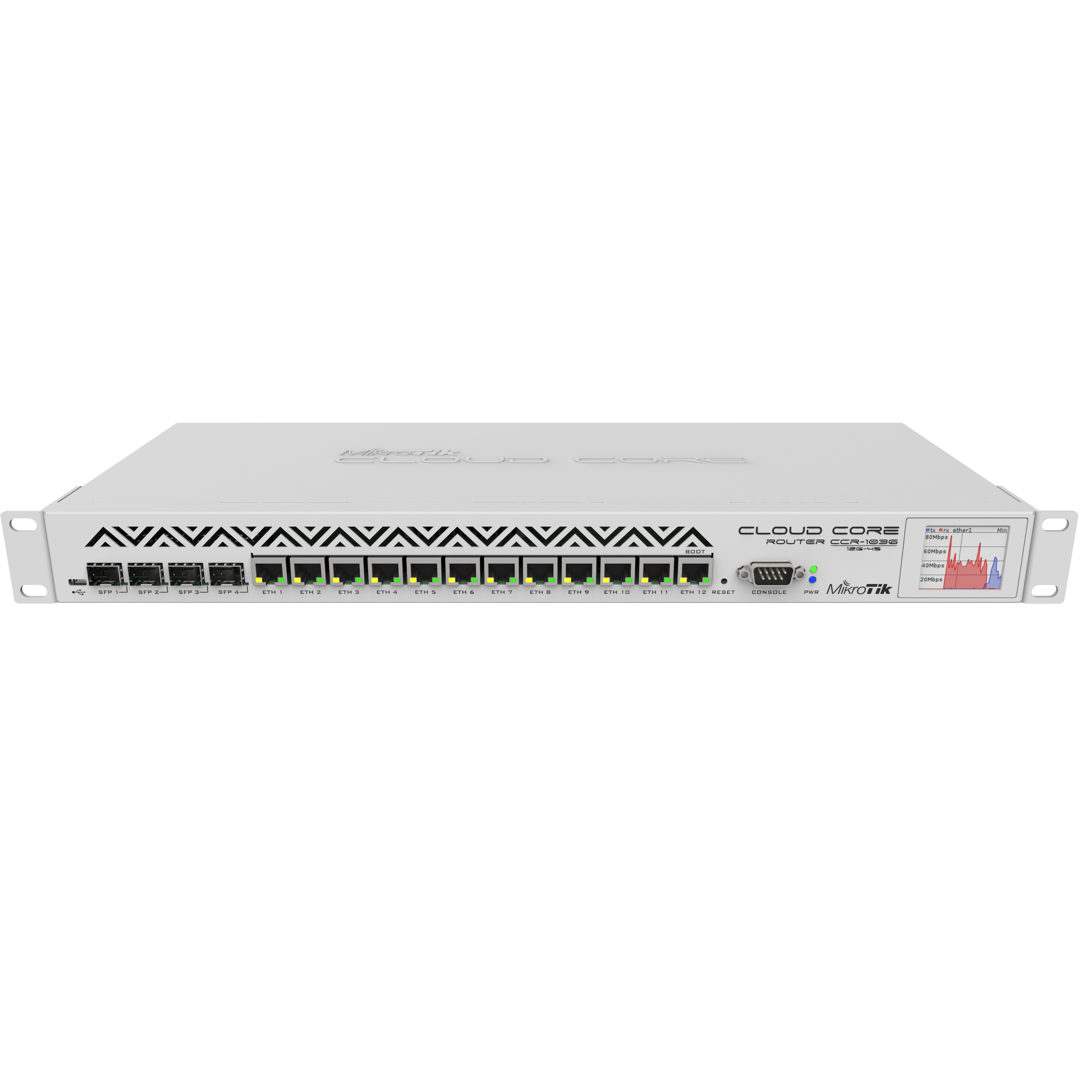

CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance – this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits – full wire speed.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
Product specifications
| Product Code | CCR1036-12G-4S-EM |
| 10/100/1000 Ethernet ports | 12 |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| Dimensions | 355x145x44mm |
| License level | 6 |
| Max Power consumption | 69W |
| Memory Cards | – |
| Memory card type | – |
| Number of AC inputs | 1 |
| Number of USB ports | 1 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| SFP DDMI | Yes |
| SFP ports | 4 |
| Serial port | RS232 |
| Size of RAM | 16 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Tested ambient temperature | -20C .. +60C |
| USB slot type | microUSB type AB |
| Voltage Monitor | Yes |
